Aim
The goal of this activity is to create an ohmmeter using Arduino.
Materials Required
- Arduino UNO R3 – 1
- USB Cable – 1
- Breadboard – 1
- 220Ω Resistors – 2
- LCD 1602 Display – 1
- I2C Display Module – 1
- Several Jumper Wires

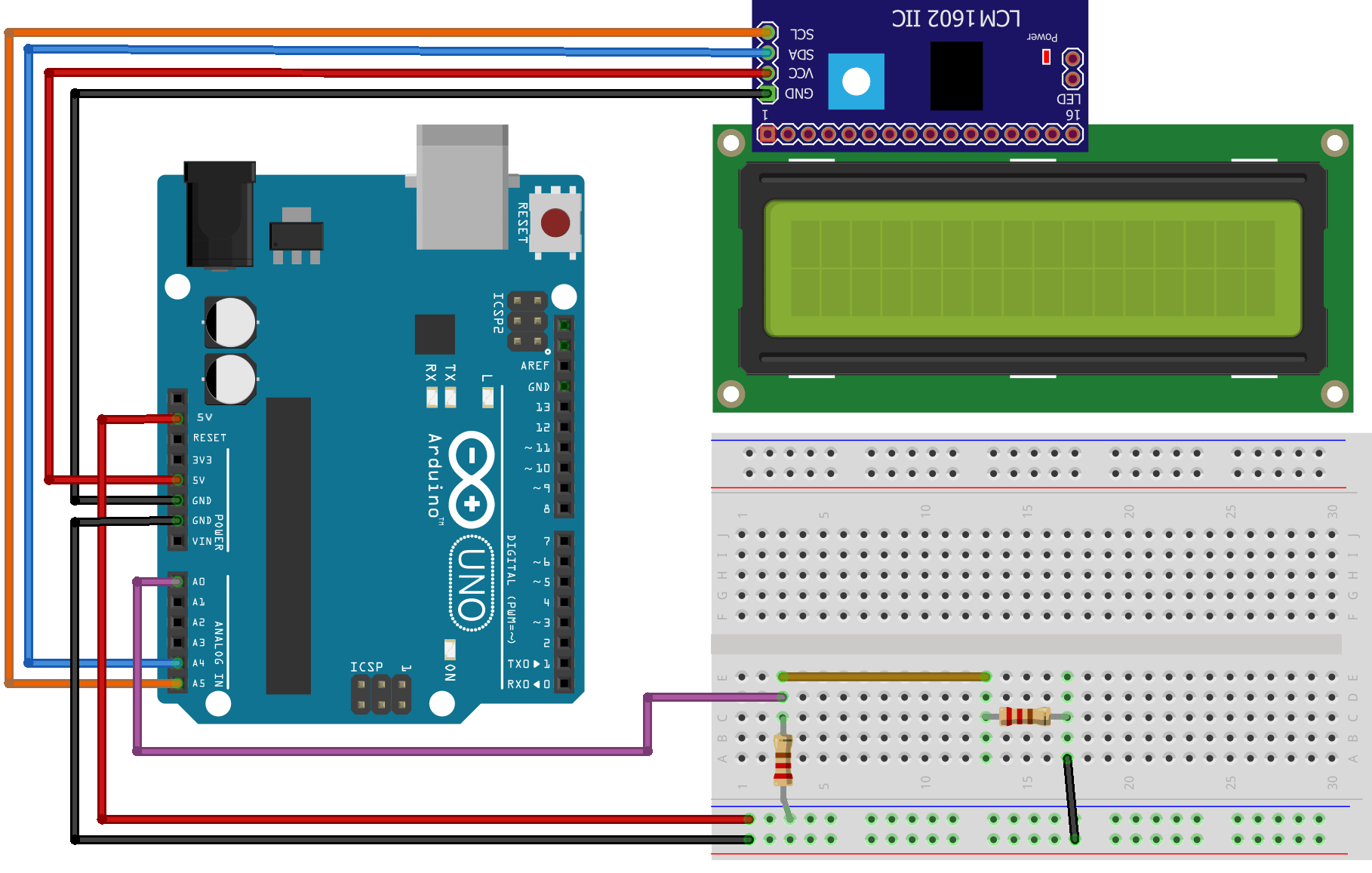

Wiring Diagram
Desired Outcome
Place any resistor in the circuit, then the LCD will display the resistance value of the resistor.
