Aim
The goal of this activity is to make a blinking LED using a 555 timer.
Materials Required
- Resistors 100kΩ & 10kΩ -1
- Breadboard -1
- 9V Battery -1
- NE555N Timer-1
- Several Jumper Wires
- 100μF Capacitors -1

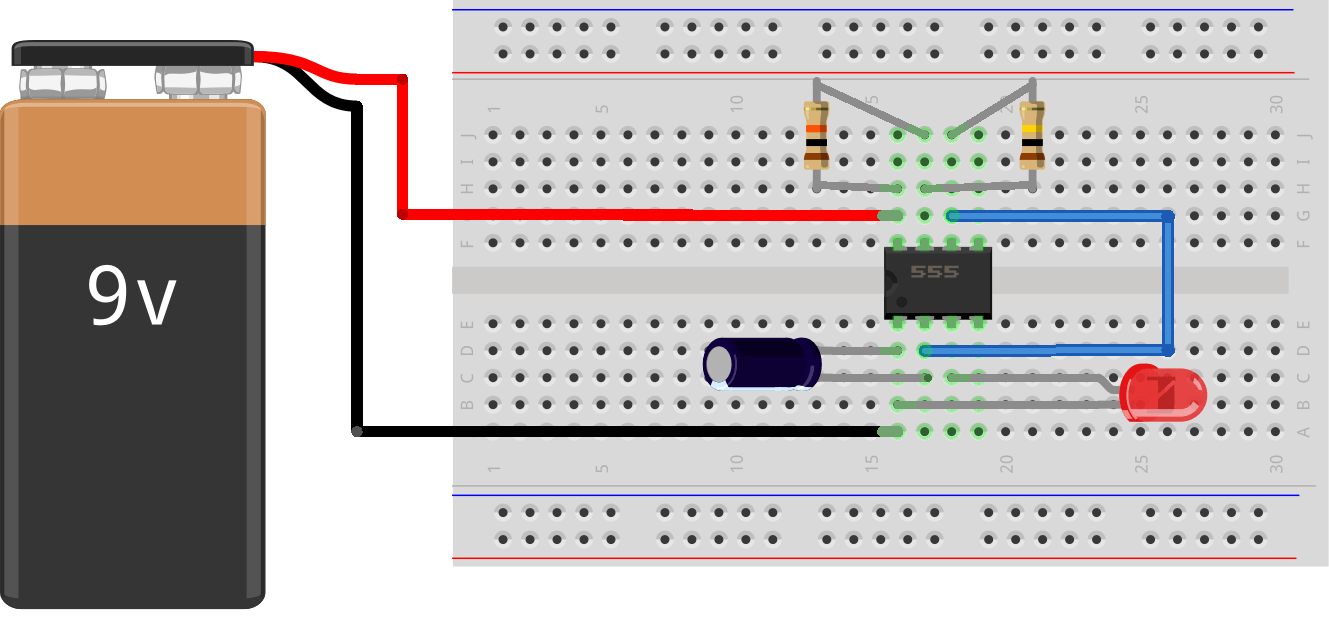

Wiring Diagram
Desired Outcome
The LED blinks in a time interval of one second.
