Button Controlled LED Using Raspberry Pi Pico

Aim

The goal of the activity is to connect an LED and a button to an Raspberry pi pico  board. The LED must be switched on or switched off, using the button

Materials Required

  1. Raspberry Pi Pico -1
  2. Breadboard – 1
  3. LED -1
  4. Push Button-1
  5. Several Jumper Wires
  6. 220Ω Resistors – 1
  7. Micro USB Cable-1

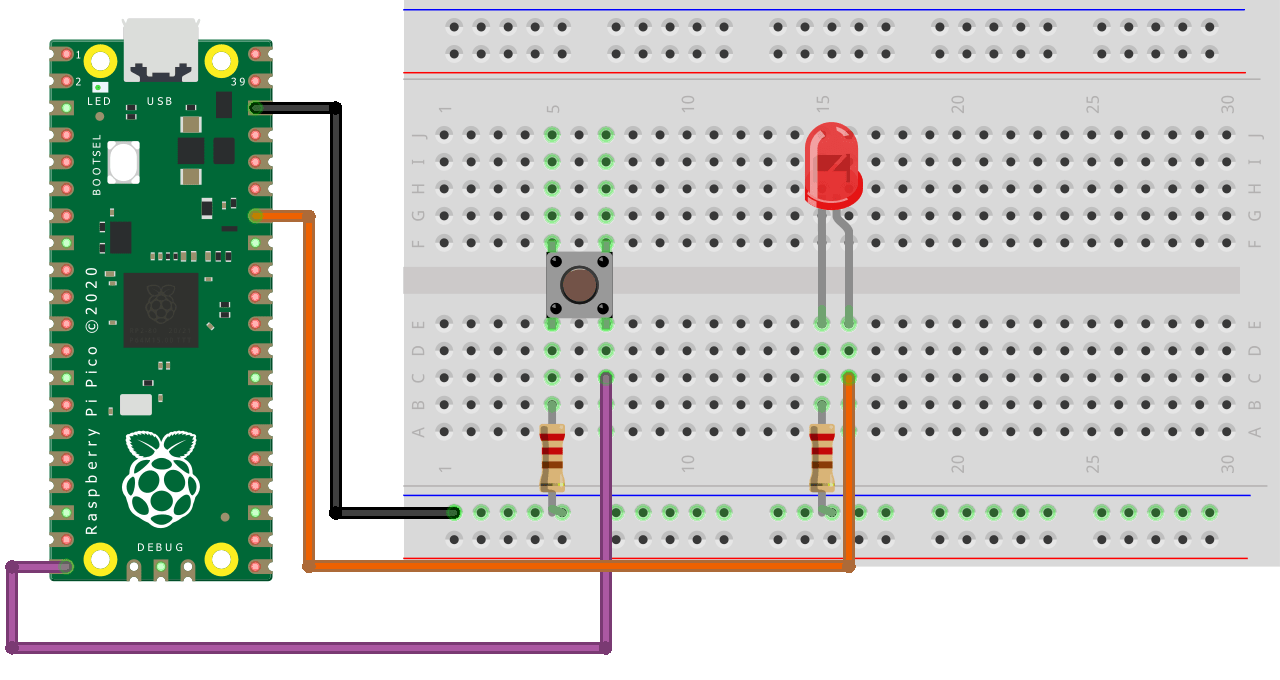

Wiring Diagram

Desired Outcome

Press the button, the LED must switch on. Press the button again and the LED must get           switched off
