Aim
The goal of this activity is to set up a door lock system using RFID.
Materials Required
- Arduino UNO R3 – 1
- USB Cable – 1
- Breadboard – 1
- Servo Motors – 1
- Red, Green LEDs – 1
- RFID – 1
- RFID Tags – 2
- Several Jumper

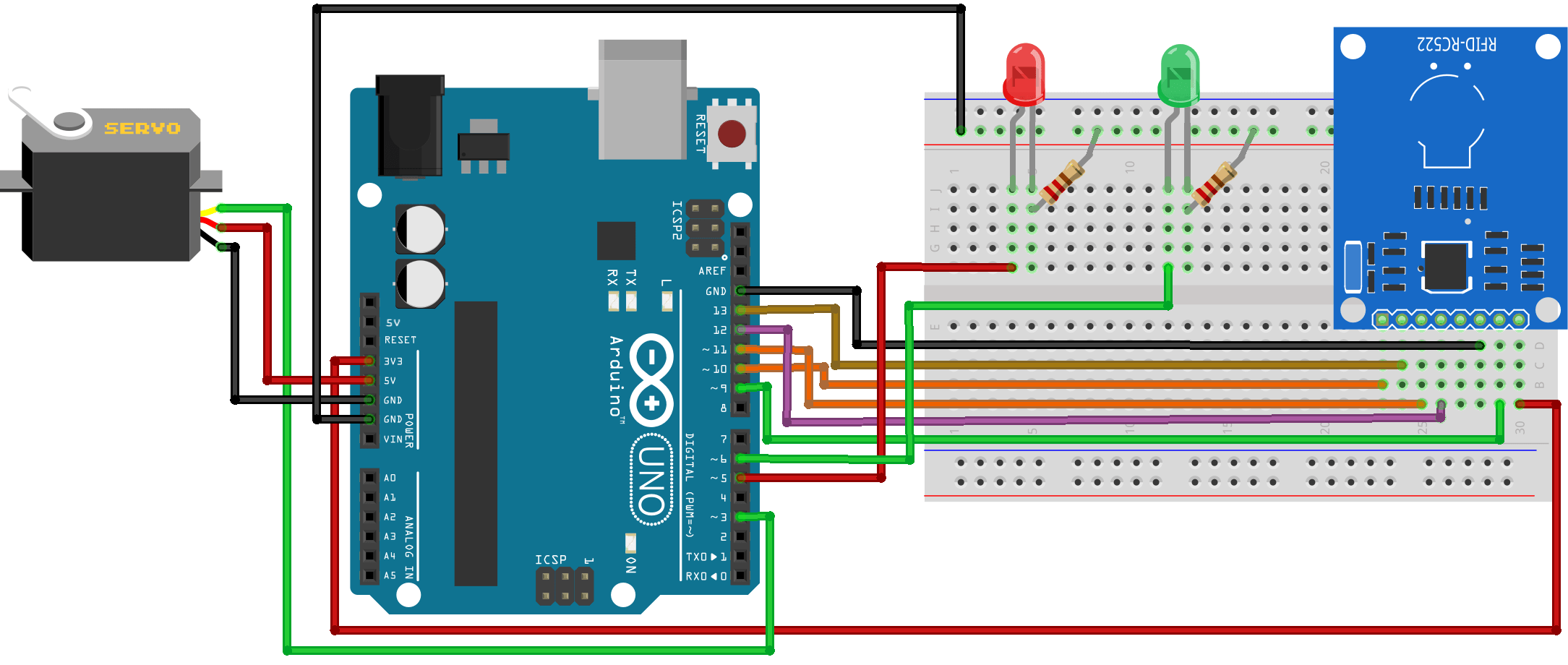

Wiring Diagram
Desired Outcome
When we place the card on the RFID reader, if the card is valid, the servo motor will rotate.
