Aim
The goal of this activity is to demonstrate how a seven segment display works.
Materials Required
- Breadboard -1
- ESP32-1
- Seven Segment Display-1
- Several Jumper Wires
- Micro USB Cable
- Breadboard
220Ω Resistors -1

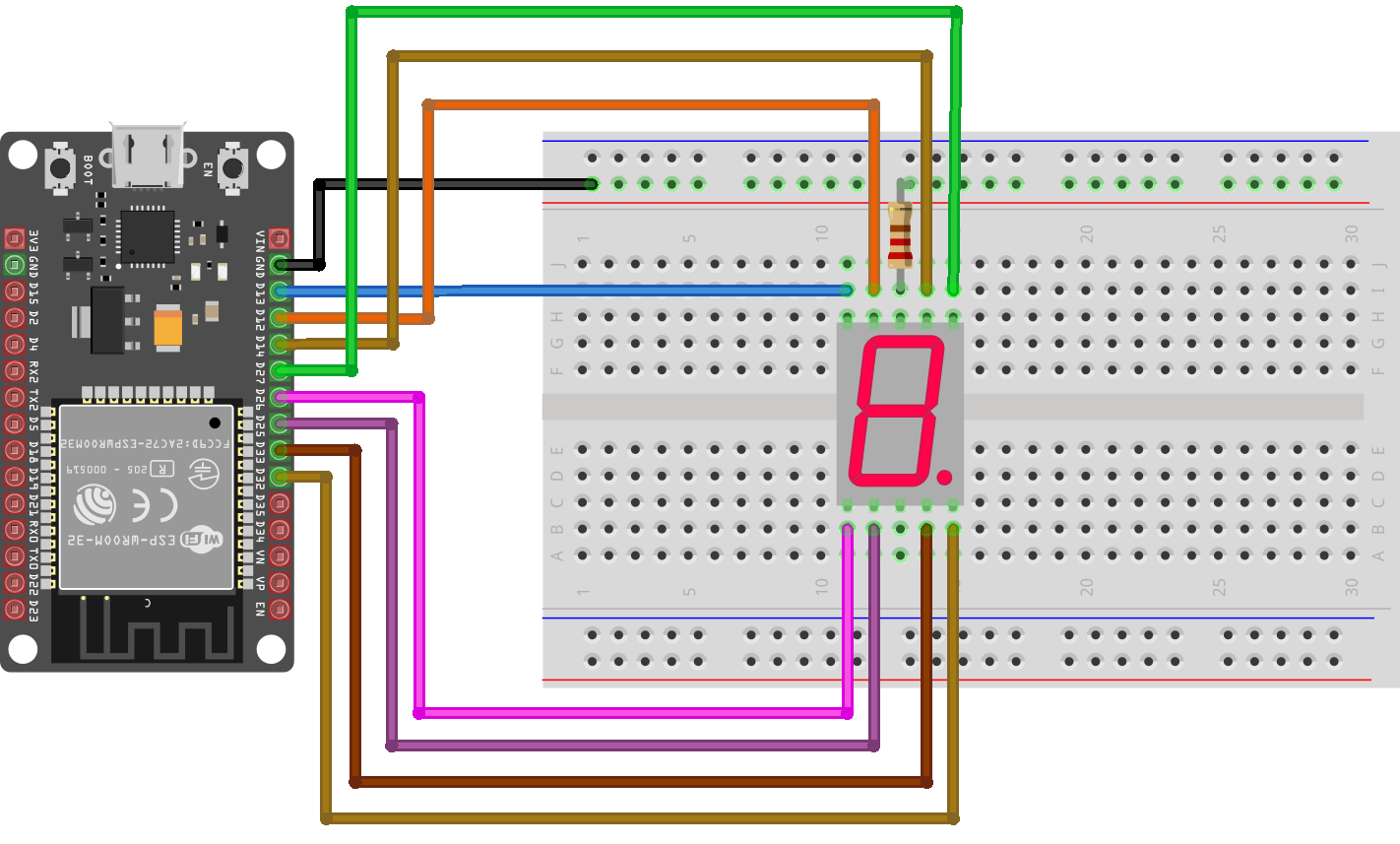

Wiring Diagram
Desired Outcome
Seven segment display will display the numbers from 0 to 9 in a sequence followed by letters A, b, C, d, E and F.
